Online Gas Analyser
Leading Manufacturers, Exporters and Wholesaler of Online Nitrogen Indicator (Model NI-01), Online Oxygen Analyser (Model OA-110), Oxygen Analyser (Model OA-10), Oxygen Analyser (Model OA-11), Oxygen Analyser (Model DPA-I0) and Oxygen Analyser (Model OA 12) from Mumbai.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Range | 70% to99.99%(byvolume)inAir |
| Resolution | 0.01% |
| Indication | 4DigitLED1/2 |
| Response Time of Sensor | 90%in15seconds. |
| Flowrate Indication | 0-1litre/minute |
| Flowrate Adjustment | By Needle Valve Control On Front Panel |
| SampleGasTemp.&Pr. | 0-40C&1.2kg(ab.)atInletport. |
| Power Supply | 230VAC+10%50Hz. |
| Dimensions | 288x144x300mm Weight:2.7kgs. |
Preferred Buyer From
| Location | Worldwide |
Artech offers high performance low cost Indicators for Nitrogen levels from pure nitrogendown to atmospheric levels. These indicators are based on electro-chemical oxygencell sensors and can be used for nitrogen derived from air separation plants. A needle valve regulator and a flow indicator on the front panel enable the user to regulate sample gasflow to the recommendedrateof0.5litres/min.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Artech |
| Model | OA-110 |
| Range | 0-1000 ppm Oxygen or 0-30% automatically selected |
| Indication | 4 Digit LED Display 1/2 Inch height |
| Transport Time from | Less Than 3 Seconds At Recommended |
| Output | RS-232 or 4-20 mA (Optional) |
| Download |  View |
Preferred Buyer From
| Location | Worldwide |
Artech offers high performance low cost analysers for measuring oxygen from percentage level to ppm level. It uses electrochemical cell for detecting oxygen in % level and microfuel cell to detect ppm level of O2. It displays automatically % value or ppm value without need of manual switching. The analyser is also provided with two independent alarm settings for percentage range and ppm range.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Artech |
| Range | 0-1000 ppm Oxygen |
| Resolution | ±1 ppm |
| Indication | 4 Digit LED Display 1/2 Inch Height |
| Panel Cutout Size | 282 x 138mm |
| Depth behind panel | 300mm |
| Weight | 2.7 kgs. |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
The Artech Trace Oxygen Analyser Model OA-10 uses an electrochemical microfuel cell to measure the concentration of oxygen in a gas stream. The cell produces an output which varies linearly with the ppm level of oxygen. The cell is specific for oxygen and is not influenced by the presence of reducing agents such as hydrocarbons, CO, SO2, etc
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand | Artech |
| Range | 0 - 30% |
| Resolution | 0.01 % |
| Indication | 4 Digit LED Display. 1/2 Inch height |
| Response Time of Sensor | 90% in 15 seconds |
| Power Supply | 230V AC + 10% |
| Dimension | 202 x 106 x 300 mm |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
Preferred Buyer From
| Location | Worldwide |

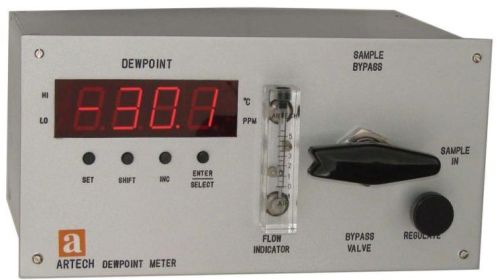

The Artech DPA10 is used for continuous measurement of the Dew Point of air and gases in Gas Plants, Annealing Furnaces, Compressed Gases, Medical Gases, Natural Gas, Drying Systems and Power Generation. The instrument is provided with a by-pass valve to isolate the sensor when not in use, thereby ensuring fast response on re-startup. With the flow indicator the user knows when the sample gas is flowing The regulator controls the pressure, thus preventing damage of the sensor path by excess/fluctuating pressure..
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Model | OA-12 |
| Range | 0 - 100% |
| Resolution | 0.1 % |
| Indication | 4 Digit LED Display. 1/2 |
| Response Time of Sensor | 90% in 15 seconds |
| Power Supply | 230V AC + 10% |
| Download | View |
Preferred Buyer From
| Location | Worldwide |
